SETUP WIRELESS-X HDMI DONGLE
Android Cast (For Nexus, Pixel, Motorolla, etc.)

CONNECT THE DONGLE

OPTION 1 - DONGLE POWERED BY TV

Do not use this option if your TV does not have USB port labeled 5V/1A. Use OPTION 2 instead.


  1. Connect the 3-END CABLE to the WIRELESS-X dongle.

  2. Plug-in the dongle directly into an HDMI port on your TV.

  3. Plug the USB-END to USB port labeled 5V/1A on your TV.

  4. Place the ANTENNA-END of cable at a location with good WiFi reception.

  5. Turn ON the TV and select the Input to the HDMI port.

  6. Wait few seconds until dongles' SSID and Password appears on the TV screen.

OPTION 2 - DONGLE POWERED BY POWER ADAPTER

Use your phone power adapter to power up the dongle. The power adapter must be labeled 5V/1A (or more).


  1. Connect the 3-END CABLE to the WIRELESS-X dongle.

  2. Plug-in the dongle directly into an HDMI port on your TV.

  3. Plug the USB-END to power adapter labeled 5V, 1A.

  4. Plug the power adapter to power outlet.

  5. Place the ANTENNA-END of cable at a location with good WiFi reception.

  6. Turn ON the TV and select the Input to the HDMI port.

  7. Wait few seconds until dongles' SSID and Password appears on the TV screen.

Warning: Make sure the Antenna-End is located as much as possible from TV body, power outlets/adapters, any cables, especially power cable.

SETUP THE DONGLE

Step 1 - Find the Dongle SSID (1) and Password (2) on the top of the TV screen.


Step 2 - Connect the Phone to the Dongle (Settings > Network & Internet > Wi-Fi > The Dongle SSID)

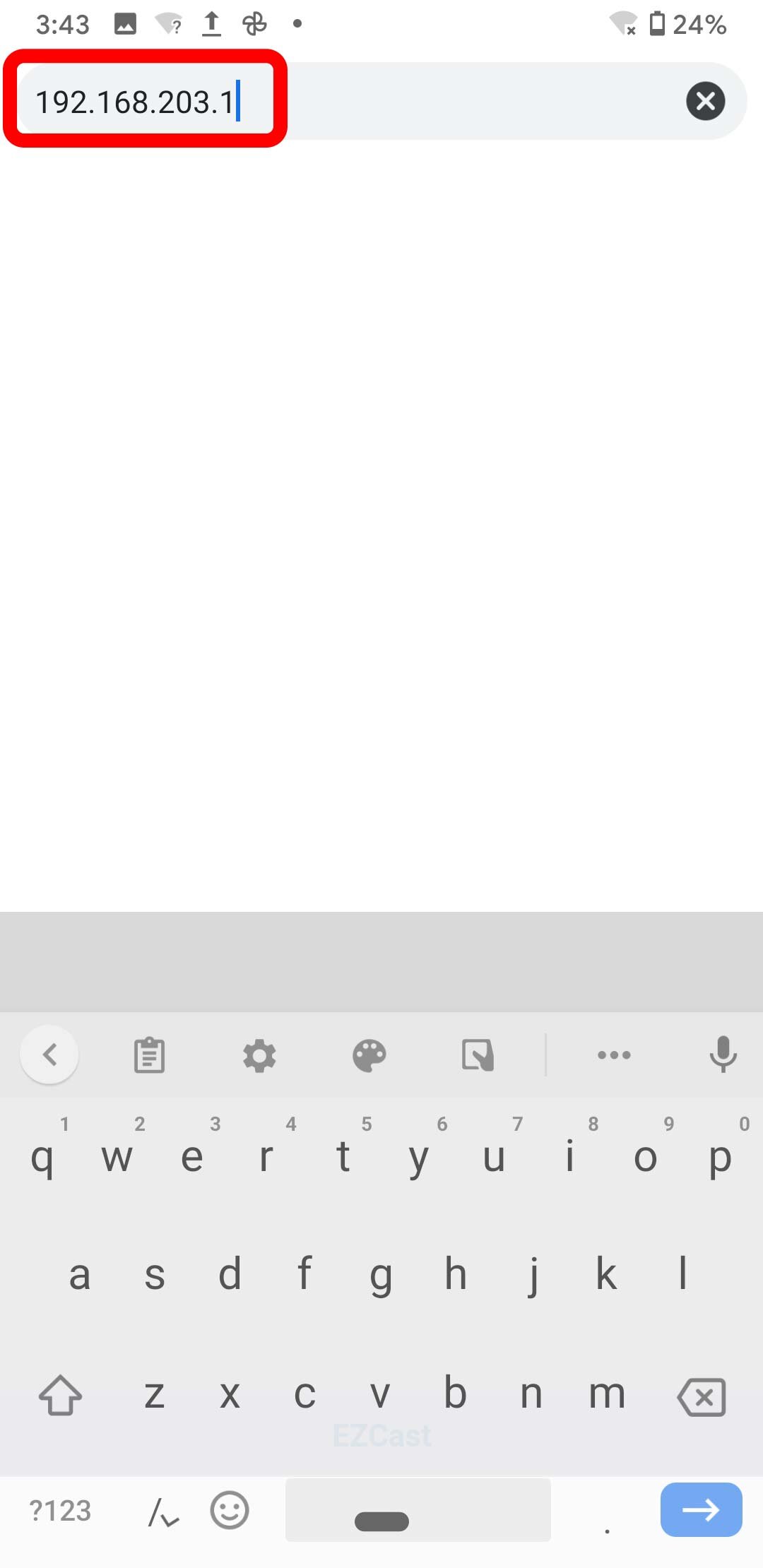

Step 3 - Connect the Dongle to the Internet (Chrome > 192.168.203.1 > Internet > Your Home WiFi 2.4GHz)

CAST THE PHONE SCREEN
