SETUP WIRELESS-X HDMI DONGLE
Android

CONNECT THE DONGLE

  1. Connect the DUAL-CABLE to the WIRELESS-X dongle.

  2. Plug-in the dongle directly into an HDMI port on your TV.

  3. IMPORTANT! Connect the cable's USB-END to original phone charger (USB, 5V/1A).

  4. Place the "WIFI" end of cable at a location with good WiFi reception (outside the VT).

  5. Turn ON the TV and select the Input to HDMI port where is the dongle connected.

  6. Wait few seconds until dongles' SSID and Password appears on the TV screen.

* NOTES:

  • You can plug the USB end to USB port on your TV only if it labeled 5V, 1A.

  • Plug USB into to unlabeled ports may damage the dongle or TV itself.

  • Your phone may be disconnected from Internet during a mirroring.

  • LaserHIT app will be unable to display setup videos when your phone offline.

  • Do not start mirroring during 1st run of the LaserHIT app.

  • Stop mirroring if you need online help (?) during a practice.


SETUP THE DONGLE

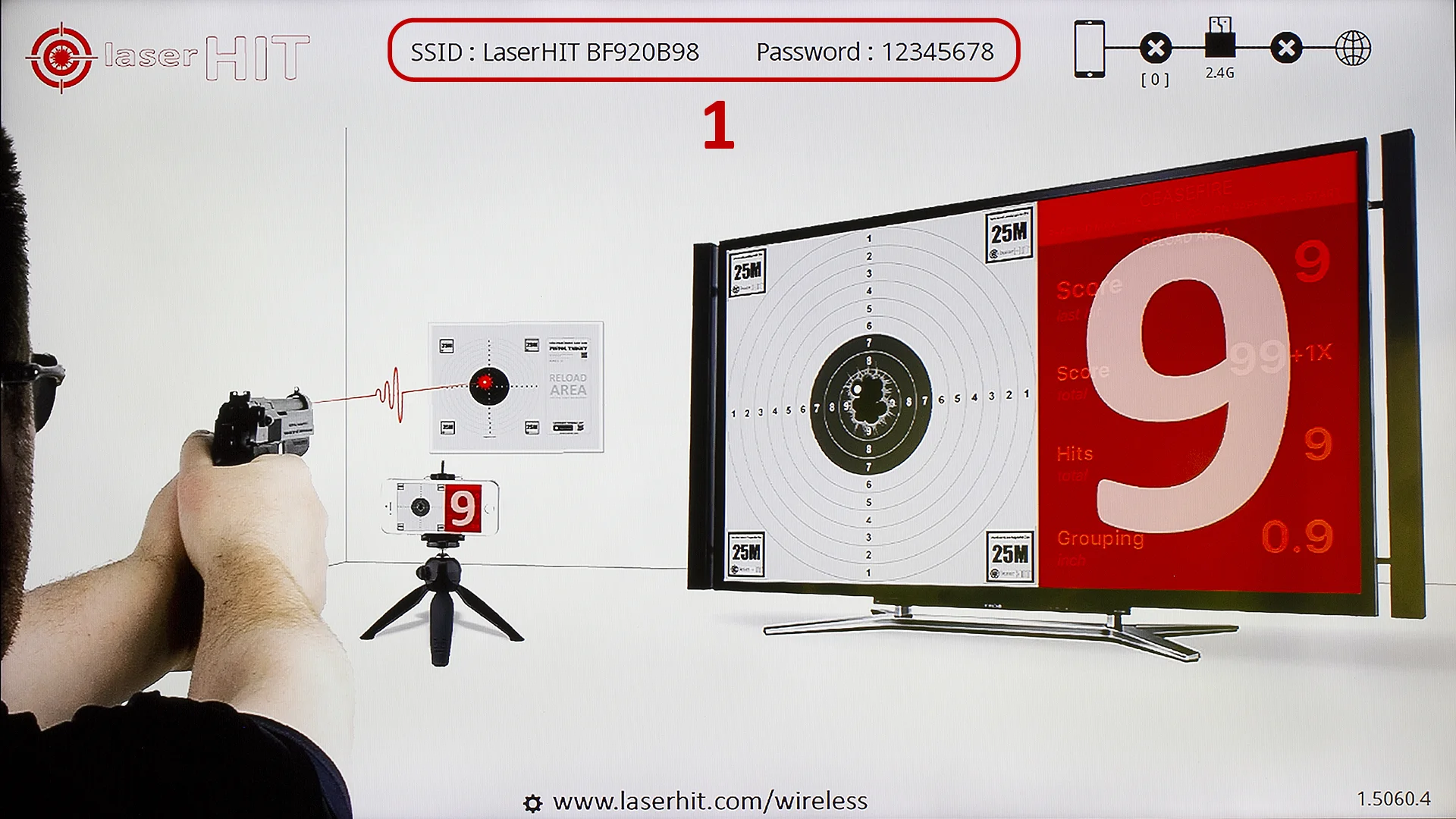

Find Dongle SSID on the top of the TV screen. The password is not necessary for screen mirroring on the Android platform.


START MIRRORING PHONE SCREEN

(refer to LaserHIT XXX instead of MiraScreen XXX on the images below)


SAMSUNG


HUAWEI

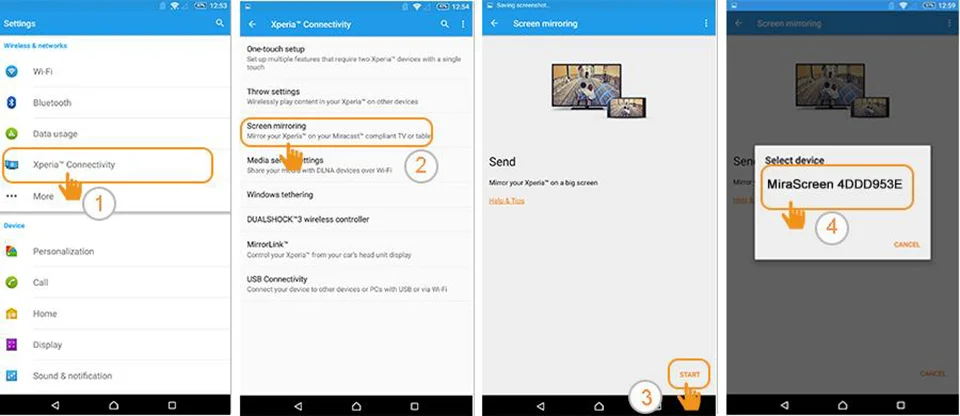

SONY


LGE


MOTOROLA


HTC


ONEPLUS


MEIZU


LENOVO
